DIKAI DK-1100B Hot Ink Roll Coder with 1 Year Warranty Long Service Life for Food Industry Date Printing Machine

Informasi Dasar

Tempat asal:	Shanghai, Cina
Nama merek:	DIKAI
Sertifikasi:	CE; ISO 9001

Kuantitas min Order:	1
Harga:	$400-500

Harga terbaik Hubungi sekarang

Komponen inti:	Papan komputer	Voltase:	130W, sekering 2A
Ukuran:	120100170mm	Area Cetak:	maks 13 baris, 20 karakter/baris
Ketik Ukuran:	3mm, 3,5mm atau sesuai permintaan	Panjang Kantung:	≥38mm(printer 4-up) ≥75mm(printer 2-up)
Gulungan Tinta Diperlukan:	36*32/ 35/ 40mm	Catu Daya:	AC220+10V,50/60Hz
Kecepatan cetak:	maks 300PPM, 35 meter/menit	Isi Cetak:	Tanggal MFG/ EXP, nomor lot, nomor seri, dll
Berat:	Unit Cetak: 2KG, Kotak Pengontrol: 1KG	Frekuensi Cetak:	≤300 cetakan/menit
Kecepatan permukaan:	35 meter/menit	Garis Cetak:	maksimal 13 baris
Ukuran paket:	773327cm
Menyoroti:	1 Year Warranty Hot Ink Roll Coder , Long Service Life Ink Roll Coder , Food Industry Date Printing Machine

DIKAI DK-1100B Hot Ink Roll Coder

The DK-1100B Ink Roll Coder is a continuous coding machine designed for integration with flow packers and continuous packing machines. It efficiently prints MFG/EXP dates, lot numbers, and serial numbers with a maximum print speed of 300 prints per minute and surface speed up to 35 meters per minute.

This industrial coder has been widely adopted in food, daily chemicals, tissue, and pharmaceutical industries. With cumulative sales exceeding 100,000 units since 2001, it serves over 4,000 end users including major brands like Mondelez, Pepsico, and Yili Dairy.

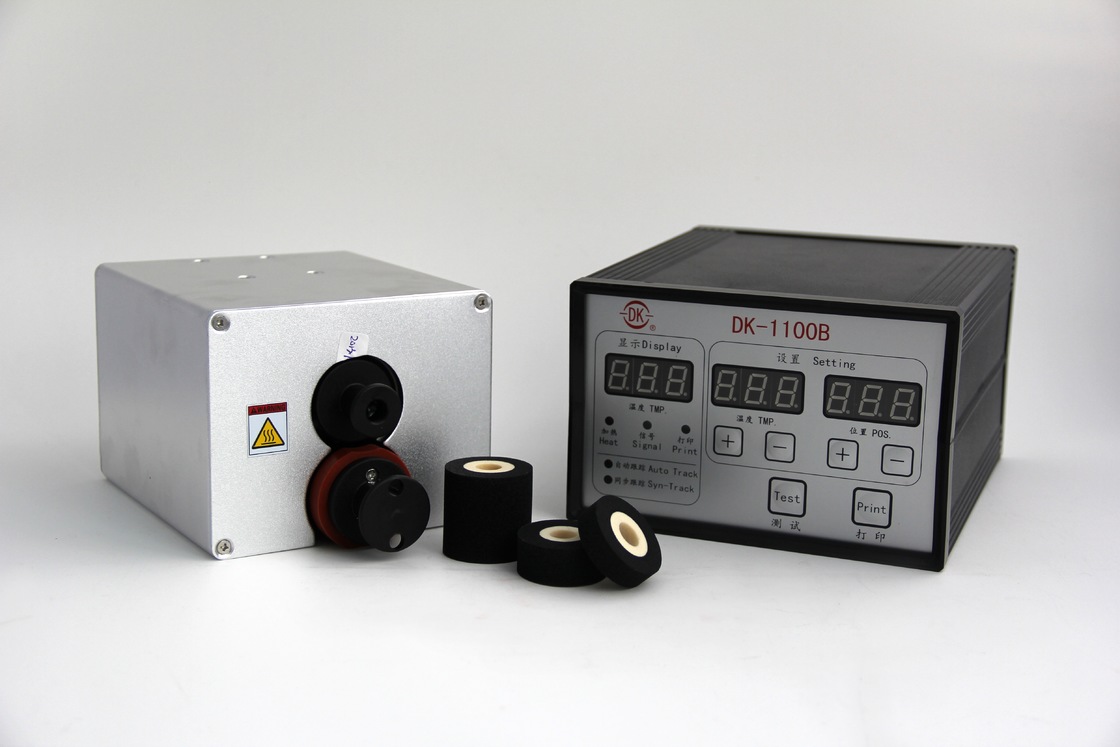

Main Components

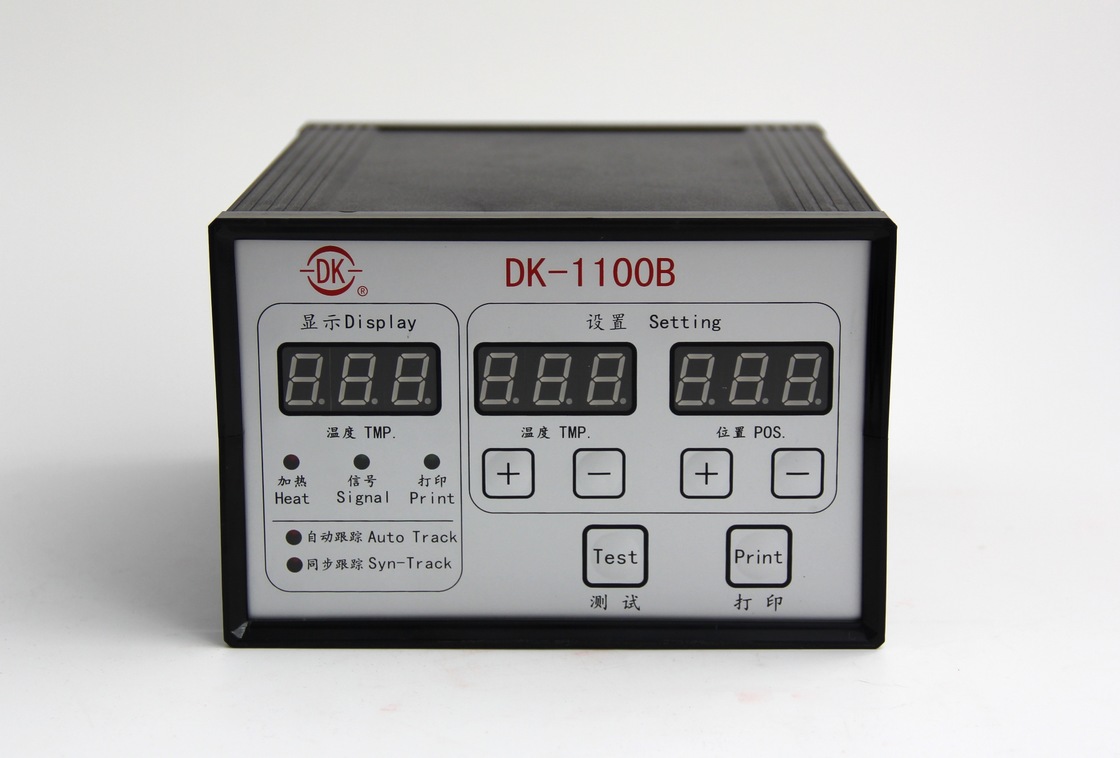

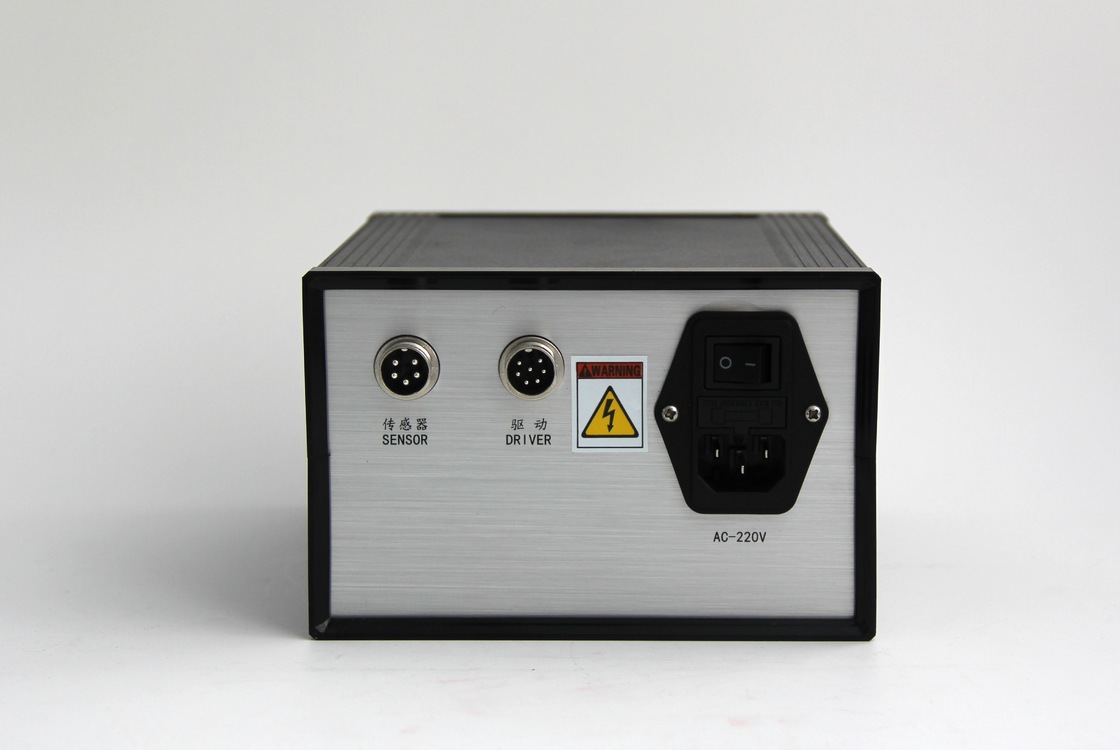

Controller

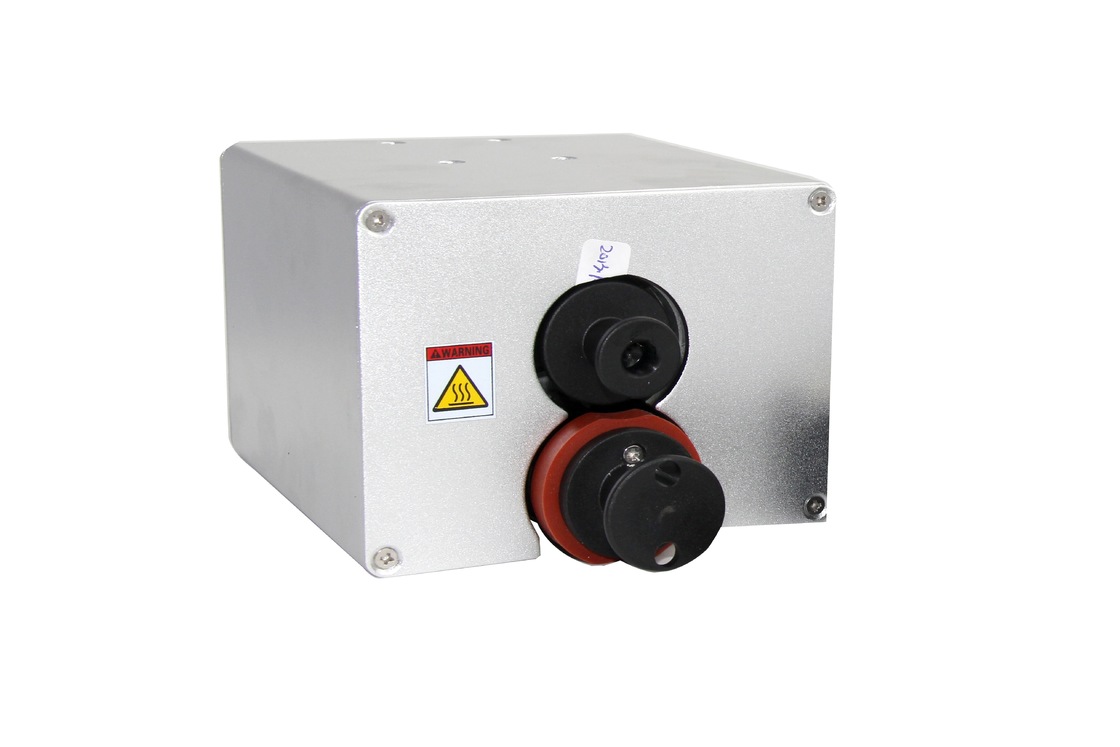

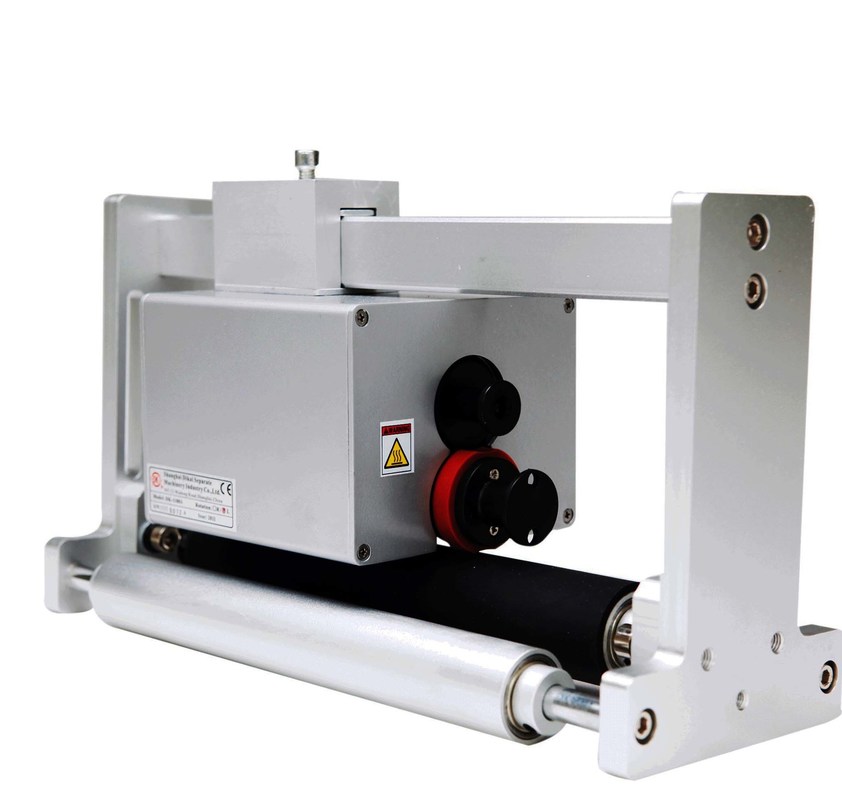

Printer Unit

Technical Specifications

Feature	Specification
Product Name	DK-1100B Ink Roll Coder
Print Area	≤13 lines, max 20 characters/line
Type Sizes	Standard 3.0T, 2.5*7T, 3.5R (custom sizes available)
Pouch Length	≥38mm (4-up printer) ≥75mm (2-up printer)
Print Frequency	≤300 prints/minute
Ink Roll Required	3632mm/3635mm/36*40mm
Electricity	AC220+10V, 50/60Hz
Power	130W, 2A fuse
Print Contents	MFG/EXP date, lot number, serial number, etc.

Note: Prices shown are not final. Please consult for customized solutions.

Applications

Max Print Speed: 300 PPM
Surface Speed: 35 meters/minute
Print Information: Date, lot number, shifts
Print Lines: Maximum 13 lines
Industry Applications: Food, daily chemicals

Print Results

Packaging & Shipping

Standard export cartons with soft internal protection
Suitable for international sea, air, and courier shipping
Package Size: 77×33×27cm (with 500mm bracket)
Gross Weight: 9.5kg
Lead Time: 1-2 weeks after order confirmation

After Sales Service

R&D support
Operation manual guidance
24-hour professional online support
Video support resources
Possible onsite support

Frequently Asked Questions

1. Why choose DIKAI?

With 25 years of experience in developing, manufacturing, and selling quality coding machines and consumables, we are committed to satisfying every customer's unique coding and marking requirements.

2. What's the regular lead time?

Standard lead time is 1-2 weeks after order confirmation. Stocked items can be shipped within 2 working days.

3. What's the warranty period?

Standard warranty is 12 months from leaving DIKAI warehouse.

4. How about after-sales service?

We work with local distributors for support in their regions, supplemented by online technical services and continuously updated video support resources.
