DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty

DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty
DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty
Informasi Dasar
Tempat asal: Shanghai, Cina
Nama merek: Dikai
Kuantitas min Order: 1
Harga: $450-600
Harga terbaik Hubungi sekarang
Voltase: AC100-AC230V, 50/60Hz Ukuran: 120X100X170mm
Berat: 4 kg Kecepatan cetak maks: 300 Cetakan/ Menit
Area Cetak: maksimal 13 baris, 20 karakter/baris Cetak berat kepala: 2.0kg
Berat kotak kontrol: 1.0kg Dimensi Kepala Cetak: 120mm*100mm*170mm (L*L*T)
Dimensi kotak kontrol: 180mm*180mm*102mm (L*L*T) Kekuatan: 130W, sekering 2A
Kisaran Suhu: 4°c-40 °c Kecepatan permukaan: hingga 35 meter/menit
Ukuran huruf: Tipe T 1.5mm, 2.0mm, 2.5mm, 3.0mm*3.5mm; Tipe R 3.5mm*3.5mm, 4.5mm, 5.5mm Ukuran gulungan tinta: ¢36*40mm
Jenis Kepala Cetak: Tangan Kanan (Searah Jarum Jam), Tangan Kiri (Berlawanan Arah Jarum Jam)
Menyoroti:

AC100-AC230V Hot Ink Roll Coder

,

120 X 100 X 170 mm Ink Roll Coder

,

1 Year Warranty Expiry Date Printer

DIKAI DK-1100B Ink Roll Coder
Product Overview

The DIKAI DK-1100A Ink Roll Coder is an electronic continuous motion coder designed for integration with packing machines. This high-performance printer features:

  • Maximum printing speed of 300 PPM
  • Print area supporting up to 13 lines for MFG/EXP dates, lot numbers, and other essential information
  • Ideal for flexible packing films in food, daily chemicals, tissue, rice, seed, and related industries
  • Proven reliability with over 100,000 units sold since 2011
  • Nearly maintenance-free operation for significant cost savings
Key Features
  • Stable printing performance
  • Minimal mechanism consumption
  • Compact footprint
  • Simple installation process
  • Easy operation
DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty 0 DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty 1

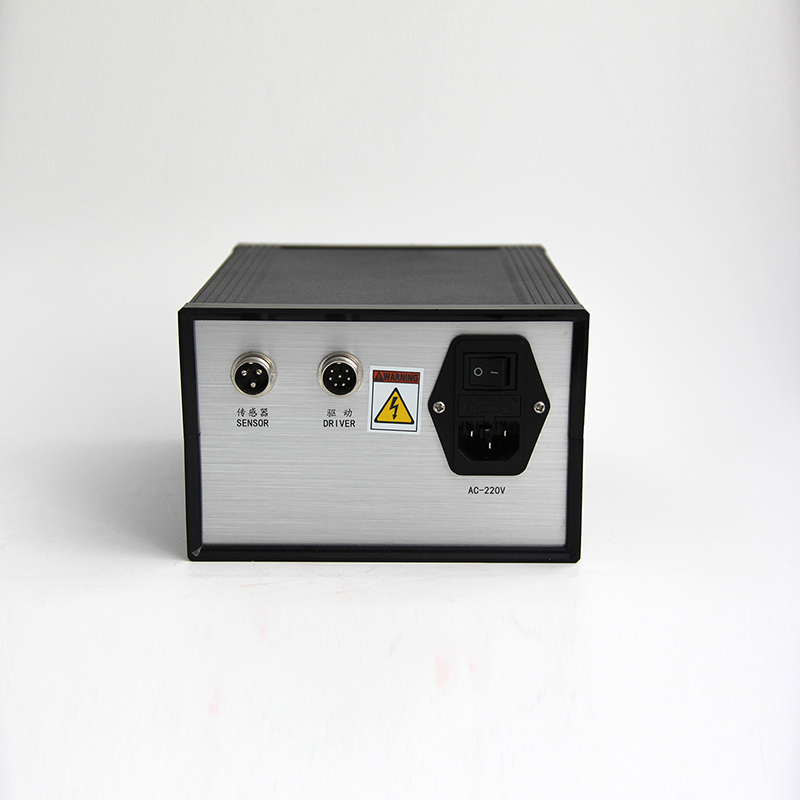

Controller Unit
DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty 2 DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty 3

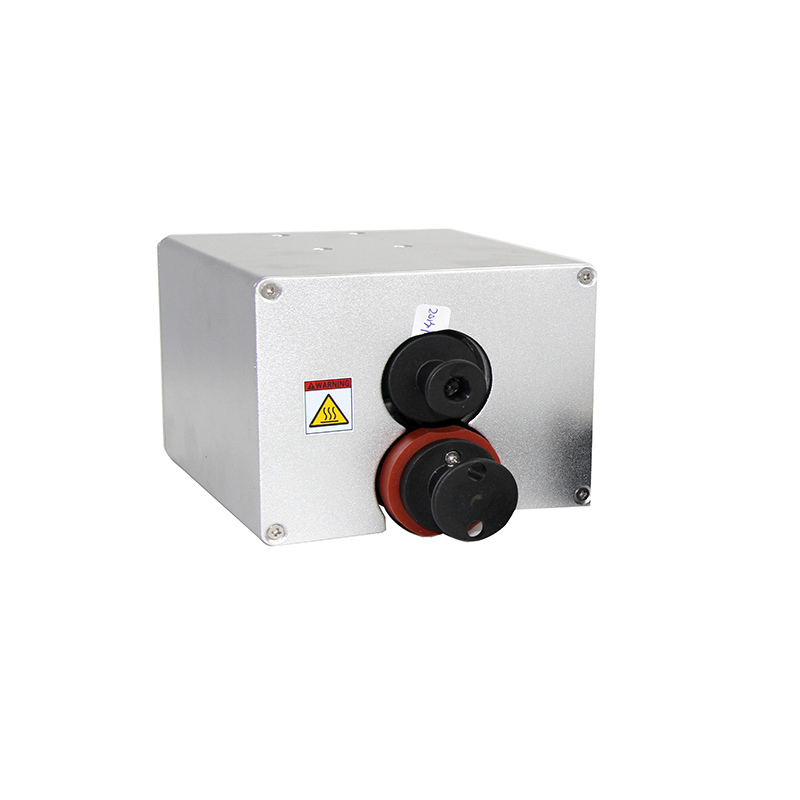

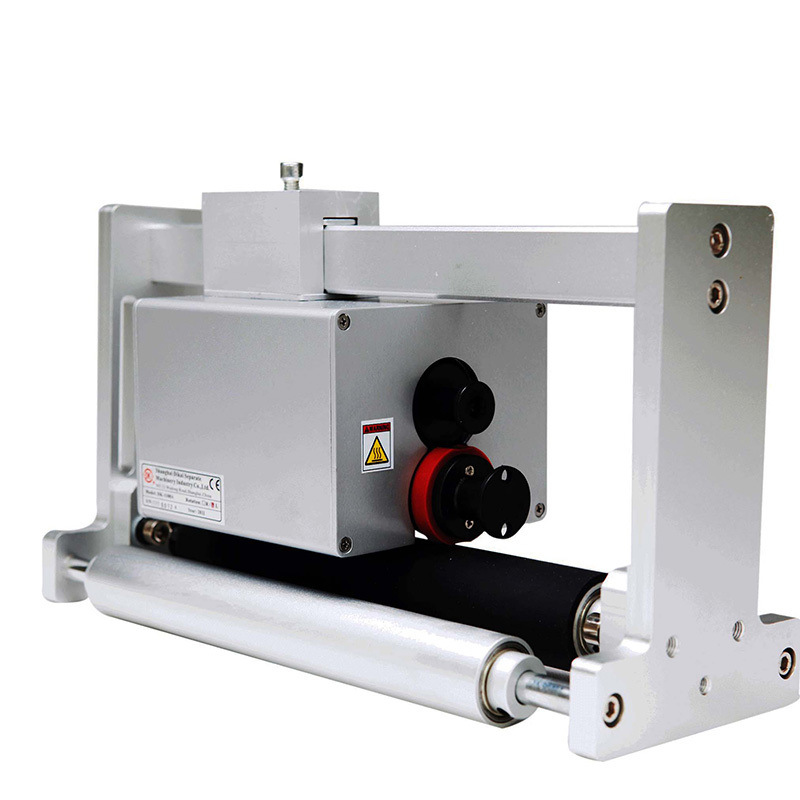

Print Unit
DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty 4
Technical Specifications
Print Area Axial=40mm; Radial=45.5mm
Pouch Length ≥38mm (4-up printer)
≥75mm (2-up printer)
Print Lines T-type (Axial) up to 13 lines, max 20 characters/line
R-type (Radial) up to 10 lines, max 13 characters/line
Font Size T-type 1.5mm, 2.0mm, 2.5mm, 3.0mm*3.5mm
R-type 3.5mm*3.5mm, 4.5mm, 5.5mm
Print Speed Up to 300 prints/minute
Surface Speed Up to 35 meters/minute
Weight Print Head 2.0kg
Control box 1.0kg
Dimensions Print Head 120mm*100mm*170mm (L*W*H)
Control Box 180mm*180mm*102mm (L*W*H)
Ink Roll Required ¢36*40mm
Electrical AC100-230V, 50/60Hz
Power 130W, 2A Fuse
Temperature Range 4°C-40°C
Note: The prices shown on Alibaba are not final prices. Please consult us for proper solutions tailored to your needs.
Packaging & Shipping

The carton package is suitable for sea, air, and fast courier shipping.

DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty 5 DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty 6
After Sales Service
DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty 7
  • R&D supports
  • Operation Manual Guidance
  • Within 24-hour professional online supports
  • Video supports
  • Possible onsite supports
Frequently Asked Questions
1. Why choose Dikai?

Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We are committed to satisfying every customer's unique needs in coding and marking applications.

2. What's the regular lead time for Dikai Products?

Standard lead time is 1-2 weeks after order confirmation. For stocked goods, delivery can be made within 2 working days.

3. What's the warranty of Dikai goods?

Standard warranty is 12 months after leaving Dikai warehouse.

4. How about your after-sales service?

For countries with distributors, we rely on our distributor network for after-sales services. Dikai also provides online technical support and continuously upgraded video support materials.
