DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface

DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface
DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface
Informasi Dasar
Tempat asal: Shanghai, Cina
Nama merek: Dikai
Kuantitas min Order: 1
Harga: $2,700-3,000
Harga terbaik Hubungi sekarang
Cetak kepala: 32mm, Kyocera; 300dpi Area Cetak: Intermiten: 32mm*60mm, kontinu: 32mm*100mm
Ukuran Pita: 33mm*500m Frekuensi Cetak: Intermittent: hingga 350ppm, kontinu: hingga 40 meter/menit
Catu daya: AC110 ~ 220V, 50/60Hz, 150W Suhu operasi: 0-40 ℃
Kelembaban relatif: 10% ~ 95% (non-kondensasi) Pasokan Udara: 6bar/90psi (maks) Kering tidak terkontaminasi
Berat: Cetak Kepala: 8.5kg, Kotak Kontrol: 2.0kg Dimensi: Unit Cetak: 188mm*190mm*180mm, Kotak Pengontrol: 210mm*180mm*155mm
Mode cetak: Intermiten/kontinu Panjang pita maks: 500m
Lebar pita: 22mm ~ 33mm Antarmuka: USB, RS232, Antarmuka Jaringan
Resolusi cetak: 300dpi
Menyoroti:

32x60mm/32x100mm Print Area Thermal Transfer Overprinter

,

AC100-240V 50/60Hz TTO Printer

,

USB/RS232/Network Interface Date Coder Printer

DIKAI D03S Smart TTO Thermal Transfer Overprinter
Professional Label and Film Date Coding Solution

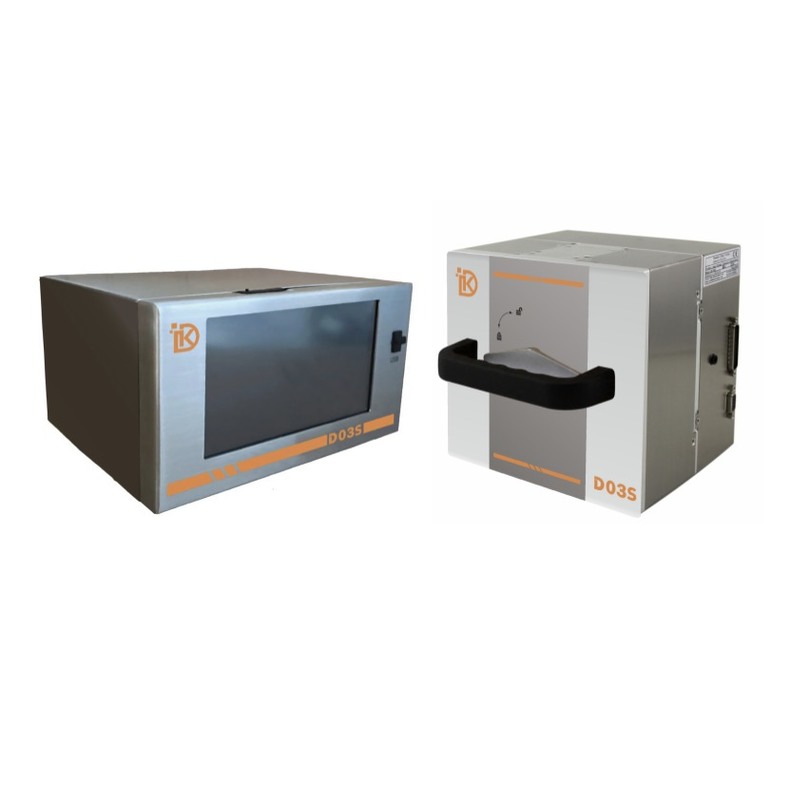

Product Overview
The DIKAI D03S Thermal Transfer Printer was developed through 4 years of dedicated R&D. This versatile machine combines intermittent and continuous printing modes, making it compatible with both horizontal and vertical packaging machines.
Key Features
  • Continuous & Intermittent printing modes
  • 32mm Kyocera Printhead with 300 DPI resolution
  • Prints real-time dates, variable data, barcodes, QR codes, graphics, and logos
  • User-friendly interface for easy operation
  • Cost-effective industrial printing solution
DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface 0 DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface 1

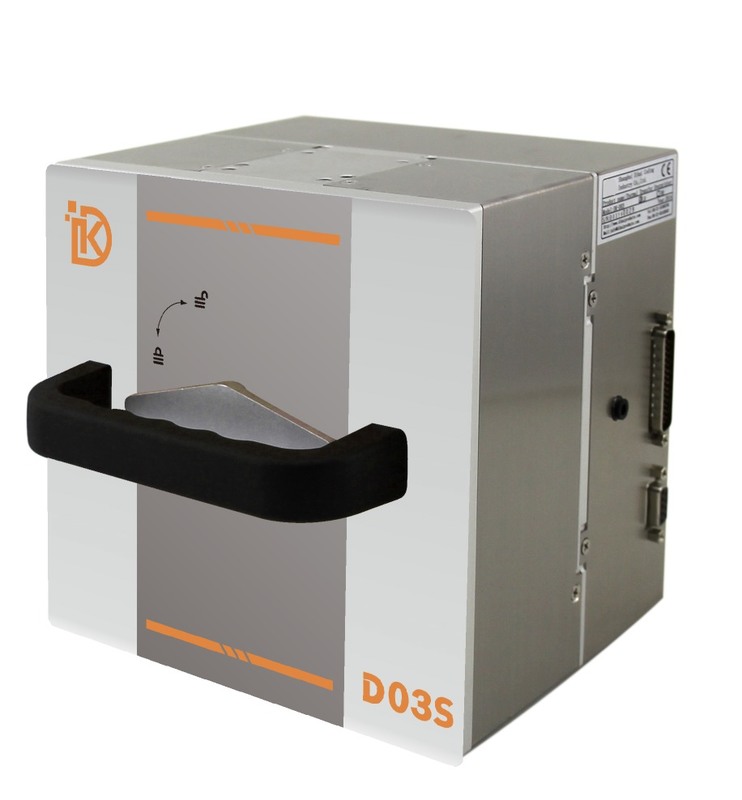

32mm Printhead Detail
DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface 2

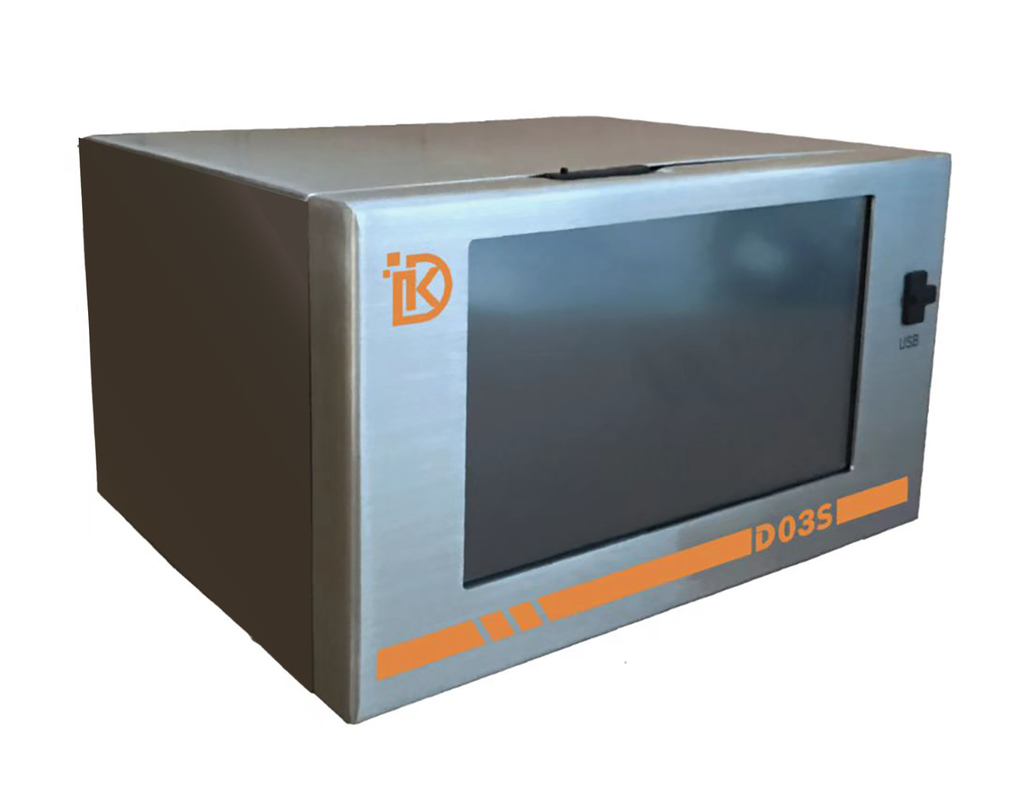

User Interface
DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface 3
Technical Specifications
Print Head 32mm, Kyocera; 300DPI
Print Area Intermittent: 32mm×60mm
Continuous: 32mm×100mm
Ribbon Size 33mm×500m
Print Frequency Intermittent: up to 350PPM
Continuous: up to 40 meters/minute
Power AC110~220V, 50/60Hz, 150W
Operation Temperature 0-40℃
Humidity 10%~95% (non-condensing)
Air Supply 6bar/90PSI (MAX) dry uncontaminated
Weight Print head: 8.5kg, Control box: 2.0kg
Dimensions Print Unit: 188×190×180mm
Controller box: 210×180×155mm
Note: Prices shown are not final. Please consult us for customized solutions.
Printing Samples
DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface 4 DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface 5 DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface 6 DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface 7
Installation Examples
DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface 8 DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface 9
Technical Support
  • R&D support and operation manual guidance
  • 24-hour professional online support
  • Video tutorials and documentation
  • Possible on-site support when required
DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface 10
