DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking

DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking

Long Service Life Ink Roll Coder

Compact Size Date Code Printer

Stable Printing Expiry Date Printer

Tempat asal:

Shanghai, Cina

Nama merek:

DIKAI

Sertifikasi:

CE; ISO 9001

Hubungi Kami
Minta Kutipan
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
Rincian produk
Voltase:
AC220+10V,50/60Hz
Kekuatan:
Sekring 130W,2A
Kecepatan cetak:
maks 300PPM, 35 meter/menit
Area Cetak:
Tipe-T: ≤13 baris, maksimal 20 karakter; Tipe-R: ≤10 baris, maksimal 13 karakter
Ketik Ukuran:
Tipe T: 2.0T,2.5T,3.0T,2.5*7T; Tipe R: 3.5R,4.5R,5.5R
Panjang Kantung:
≥38mm (printer 4-up), ≥75mm (printer 2-up)
Ukuran gulungan tinta:
36*32mm, 36*35mm, 36*40mm
Ukuran:
Unit Pencetak: 120*100*170mm
Berat:
Unit Cetak: 2KG, Kotak Pengontrol: 1KG
Frekuensi Cetak:
≤300 kali/menit
Isi Cetak:
Tanggal MFG/EXP, nomor lot, nomor seri
Komponen inti:
Papan komputer
Tipe yang digerakkan:
Listrik
Nilai Otomatis:
Otomatis
Bahan pengemasan:
Kertas
Menyoroti:

Long Service Life Ink Roll Coder

,

Compact Size Date Code Printer

,

Stable Printing Expiry Date Printer

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1
Harga
$450-600
Waktu pengiriman
5-8 hari kerja
Produk terkait
Harga bagus Mesin Pengkodean Gulungan Tinta 210V Otomatis 36mm 2A sekering Mesin Cetak Tanggal MFG on line

Mesin Pengkodean Gulungan Tinta 210V Otomatis 36mm 2A sekering Mesin Cetak Tanggal MFG

Dapatkan Harga Terbaik
Harga bagus 130W Hot Ink Roll Coder 36x35mm 300 PPM Kode Tanggal Kadaluwarsa Printer on line

130W Hot Ink Roll Coder 36x35mm 300 PPM Kode Tanggal Kadaluwarsa Printer

Dapatkan Harga Terbaik
Harga bagus Mesin Cetak Paket Makanan Cap Tanggal Kedaluwarsa 130W 35m / mnt AC 230V on line

Mesin Cetak Paket Makanan Cap Tanggal Kedaluwarsa 130W 35m / mnt AC 230V

Dapatkan Harga Terbaik
Harga bagus 220V 36x32mm Hot Ink Roll Coder / Mesin Pengodean Tanggal Kadaluwarsa 300 PPM on line

220V 36x32mm Hot Ink Roll Coder / Mesin Pengodean Tanggal Kadaluwarsa 300 PPM

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi Produk

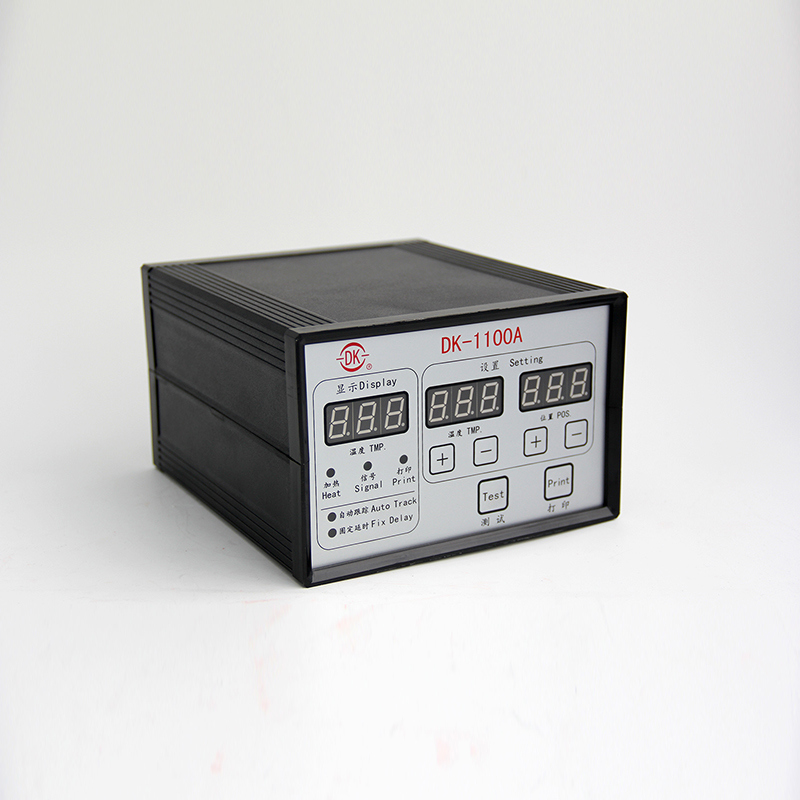

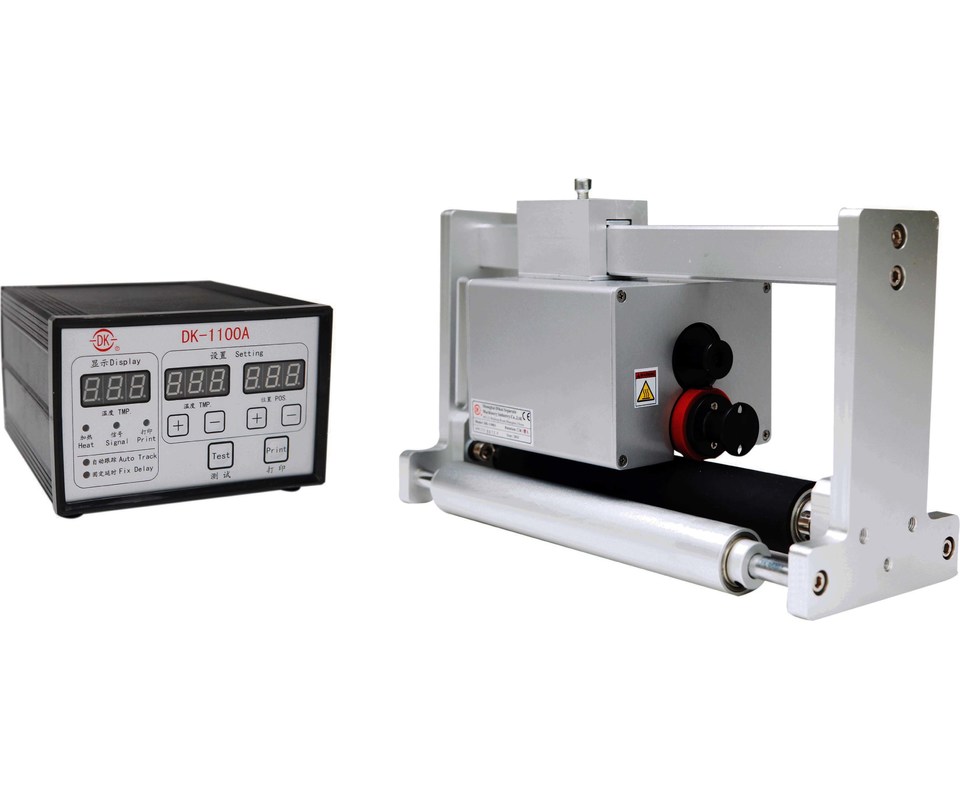

DIKAI DK-1100A Ink Roll Coder Date Machine
Product Overview
The DK-1100A Ink Roll Coder is an electronic continuous motion coder designed for integration with packing machines, capable of printing at speeds up to 300 PPM. With a print area supporting up to 13 lines, it efficiently prints MFG/EXP dates, lot numbers, and other essential information on flexible packaging films. Widely used in food, daily chemicals, tissue, rice, and seed industries, this model has achieved over 100,000 units sold since its 2011 launch. Its nearly maintenance-free operation significantly reduces operational costs.
Key Features
  • Fast printing speed up to 300 PPM
  • Consistent and stable printing quality
  • Low mechanism consumption
  • Compact design for easy integration
  • Simple installation and operation
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 0 DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 1 DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 2 DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 3
Technical Specifications
Product Name DK-1100A Ink Roll Coder
Print Area T-Type (Axial): ≤13 lines, max 20 characters per line
R-Type (Radial): ≤10 lines, max 13 characters per line
Type Sizes T-Type: 2.0T, 2.5T, 3.0T, 2.5*7T
R-Type: 3.5R, 4.5R, 5.5R
Pouch Length ≥38mm (4-up printer)
≥75mm (2-up printer)
Print Frequency ≤300 times/min
Ink Roll Required 36×32mm, 36×35mm, 36×40mm
Electricity AC220+10V, 50/60Hz
Power 130W, 2A fuse
Print Speed Max 300PPM, 35 meters/minute
Print Contents MFG/EXP date, lot number, serial number, etc.
Note: Prices shown are not final. Please consult us for customized solutions.

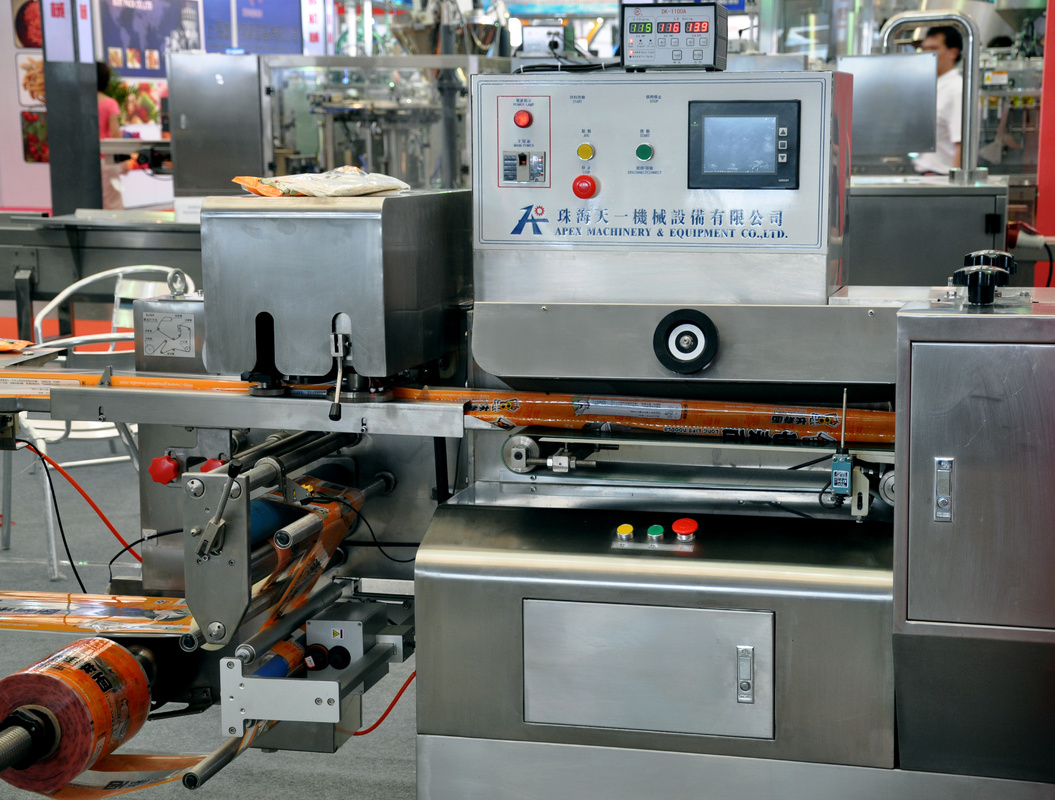

Installation & Operation
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 4 DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 5
Printing Samples
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 6 DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 7
Packaging & Shipping
The product is securely packaged in cartons suitable for sea, air, or courier shipping.
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 8 DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 9
Technical Support
  • R&D support
  • Operation manual guidance
  • 24-hour professional online support
  • Video tutorials
  • Possible on-site support
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking 10
Frequently Asked Questions
1. Why choose Dikai?
With 25 years of experience in developing, manufacturing, and selling quality coding machines and consumables, we are committed to meeting every customer's unique coding and marking requirements.
2. What's the regular lead time for Dikai products?
Standard lead time is 1-2 weeks after order confirmation. Stocked items can be shipped within 2 working days.
3. What's the warranty of Dikai goods?
Standard warranty is 12 months from the date of leaving our warehouse.
4. How about your after-sales service?
We work with local distributors for after-sales support in their regions, supplemented by online technical services and continuously updated video support materials.
