DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface

32x60mm/32x100mm Print Area Thermal Transfer Overprinter

AC100-240V 50/60Hz TTO Printer

USB/RS232/Network Interface Date Coder Printer

Tempat asal:

Shanghai, Cina

Nama merek:

Dikai

Hubungi Kami

Minta Kutipan

DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface

Rincian produk

Cetak kepala:

32mm, Kyocera; 300dpi

Area Cetak:

Intermiten: 32mm*60mm, kontinu: 32mm*100mm

Ukuran Pita:

33mm*500m

Frekuensi Cetak:

Intermittent: hingga 350ppm, kontinu: hingga 40 meter/menit

Catu daya:

AC110 ~ 220V, 50/60Hz, 150W

Suhu operasi:

0-40 ℃

Kelembaban relatif:

10% ~ 95% (non-kondensasi)

Pasokan Udara:

6bar/90psi (maks) Kering tidak terkontaminasi

Berat:

Cetak Kepala: 8.5kg, Kotak Kontrol: 2.0kg

Dimensi:

Unit Cetak: 188mm*190mm*180mm, Kotak Pengontrol: 210mm*180mm*155mm

Mode cetak:

Intermiten/kontinu

Panjang pita maks:

500m

Lebar pita:

22mm ~ 33mm

Antarmuka:

USB, RS232, Antarmuka Jaringan

Resolusi cetak:

300dpi

Menyoroti:

32x60mm/32x100mm Print Area Thermal Transfer Overprinter

AC100-240V 50/60Hz TTO Printer

USB/RS232/Network Interface Date Coder Printer

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

$2,700-3,000

Waktu pengiriman

5-8 hari kerja

Produk terkait

Video

Mesin Pencetakan Transfer Panas Digital Kantong Plastik 300 PPM 150W

Dapatkan Harga Terbaik

Video

Near Edge Thermal Transfer Overprinter Coding Machine AC 110V Dengan Printhead 53mm

Dapatkan Harga Terbaik

Mesin Printer Barcode Stamp 300 DPI 32mm Printhead Untuk Kantong Plastik

Dapatkan Harga Terbaik

Kode QR 150W Thermal Transfer Overprinter / Mesin Cetak Pneumatik

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

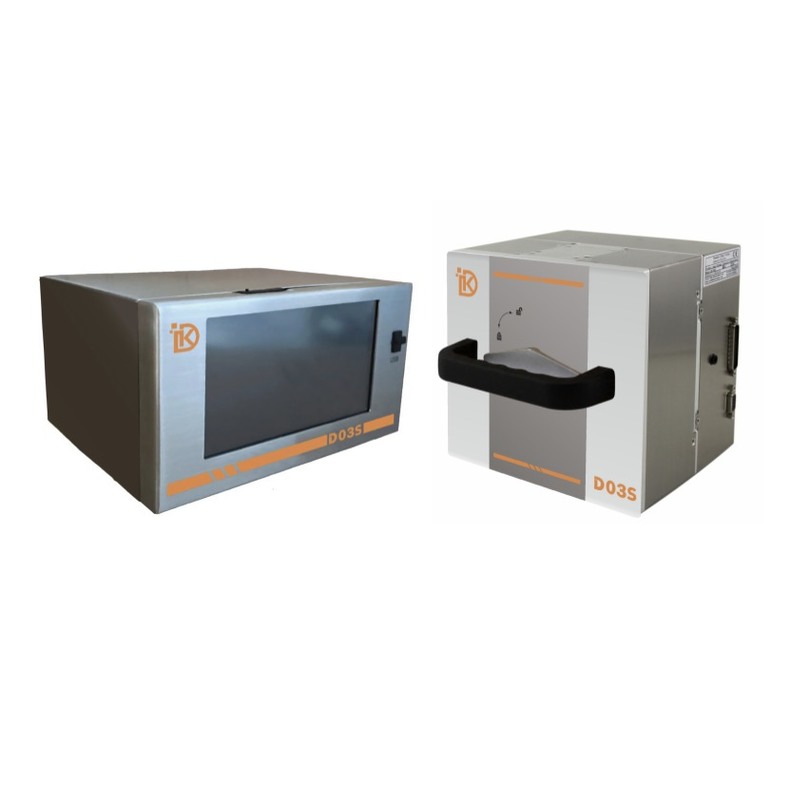

DIKAI D03S Smart TTO Thermal Transfer Overprinter

Professional Label and Film Date Coding Solution

Product Overview

The DIKAI D03S Thermal Transfer Printer was developed through 4 years of dedicated R&D. This versatile machine combines intermittent and continuous printing modes, making it compatible with both horizontal and vertical packaging machines.

Key Features

Continuous & Intermittent printing modes
32mm Kyocera Printhead with 300 DPI resolution
Prints real-time dates, variable data, barcodes, QR codes, graphics, and logos
User-friendly interface for easy operation
Cost-effective industrial printing solution

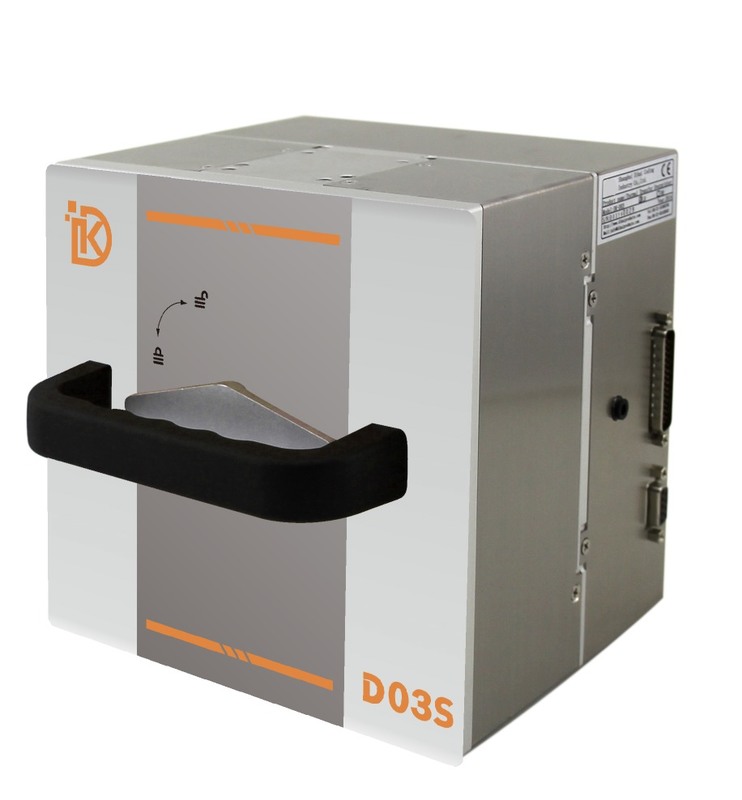

32mm Printhead Detail

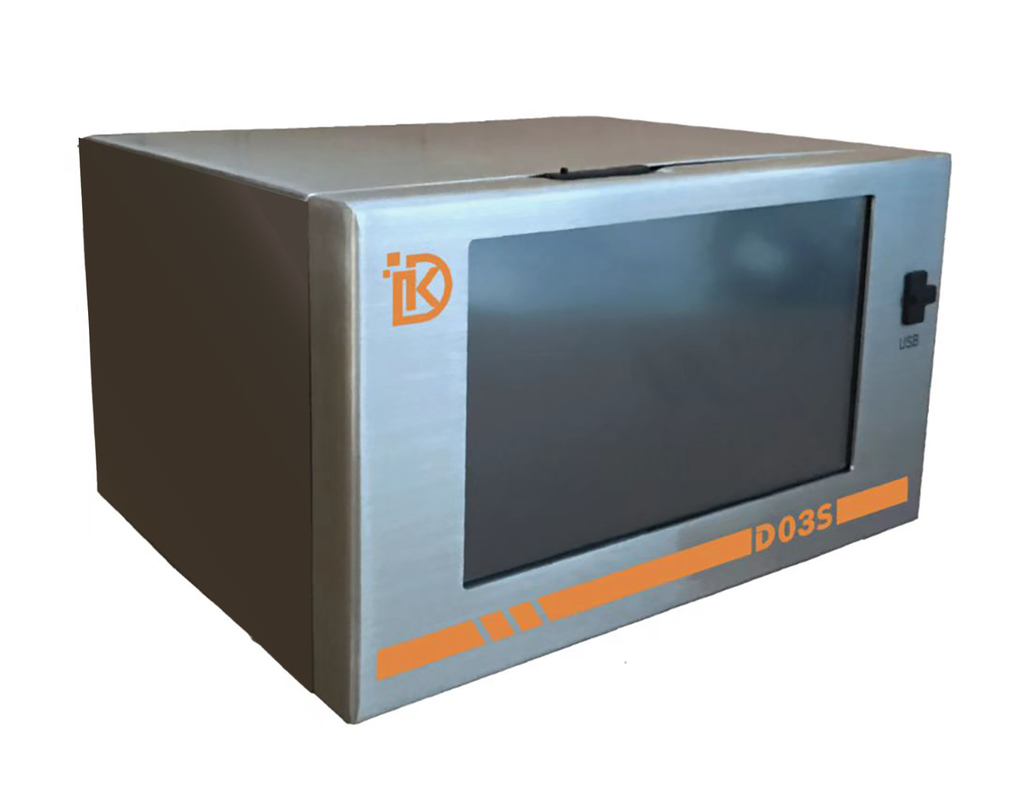

User Interface

Technical Specifications

Print Head	32mm, Kyocera; 300DPI
Print Area	Intermittent: 32mm×60mm Continuous: 32mm×100mm
Ribbon Size	33mm×500m
Print Frequency	Intermittent: up to 350PPM Continuous: up to 40 meters/minute
Power	AC110~220V, 50/60Hz, 150W
Operation Temperature	0-40℃
Humidity	10%~95% (non-condensing)
Air Supply	6bar/90PSI (MAX) dry uncontaminated
Weight	Print head: 8.5kg, Control box: 2.0kg
Dimensions	Print Unit: 188×190×180mm Controller box: 210×180×155mm
